The raw material is fed into the hopper.

The Basic Extrusion Line

The die located at the end of the machine determines the shape of the end product.
Finished product.
The plastic is pulled out by a pulling apparatus. A constant speed is necessary here.
To obtain proper dimensions, the extrudate must go through a process of controlled cooling and sizing.

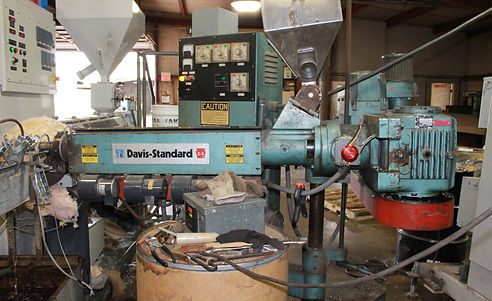

Extruder melts raw material and forces it through the die.

Raw Material

Extrusion Process

Finished Product

Customer
